What Is LTO? And, When Do You Need It?

Hard drives are not perfect (for archival)

Traditional hard disk storage offers many benefits. HDDs feature massive capacities, up to 18TB in size, and the drives are low-cost. However, hard drives have some serious drawbacks: potential for mechanical failure, fragile components, weight, heat generation, and limited overall shelf life of approximately seven years. Think about how devastating it would be to lose 18TB of data at once from a single failure! While hard drives remain an excellent choice for storage for current projects, they are not ideal as a long-term solution.

Network-attached storage, also known as a NAS, is often used for archiving projects. Networked storage is designed for high-speed collaboration and is not an ideal format for long-term storage. To keep your NAS at peak performance, it is best to archive projects upon completion and not keep drives filled to capacity.

What Makes LTO Ideal

Many working professionals rely on tape-based data storage on a daily basis. Tape-based storage is a tried-and-true medium that is as old as computing itself. After years of competition in the storage space, IBM, HP, and Quantum formed an open-source project called the LTO Consortium. This body of engineers works in collaboration to improve LTO standards. Since 2000, LTO quickly became the tape format of choice for the computing industry.

The LTO Workflow

How the tape drive works: If you are using an LTFS or an LTFS-based application, LTO media mounts onto a Mac just like any external hard drive or network volume. The Finder “sees” the tape as storage. While you can interact with the LTO at the Finder level—copying files by dragging to the LTO or retrieving by dumping onto the desktop—you’ll want to use an LTO application for interacting with the tape. LTO software like OWC ArGest Backup will build catalogs of your data for easier, automated retrieval. When you’re done, just drag the LTO icon on your desktop to the trash bin in the dock, and the tape ejects from the drive.

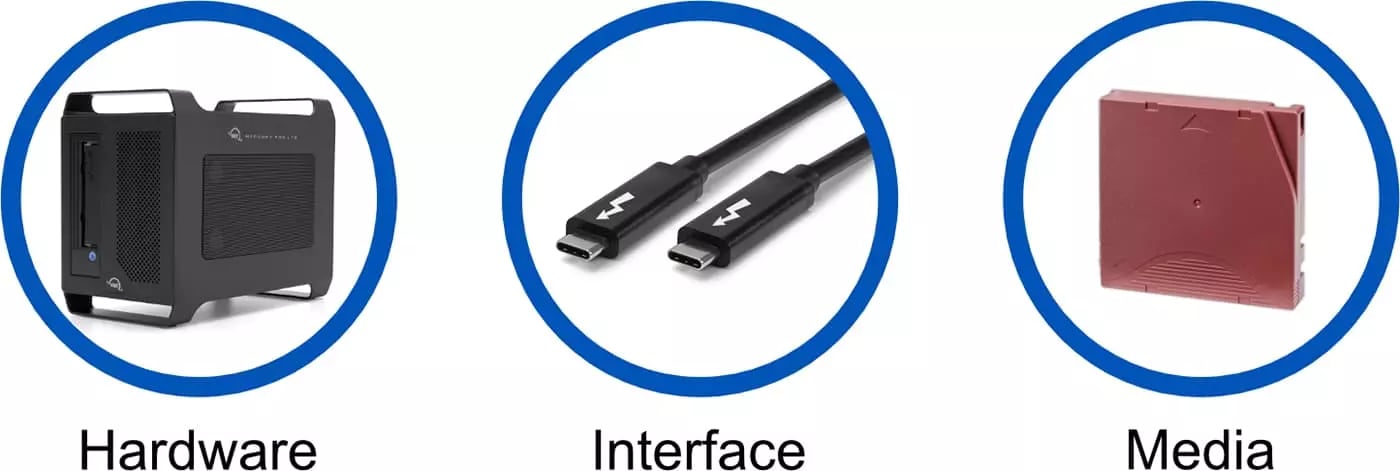

An LTO workflow consists of three components: an LTO machine to read and write tapes, an interface to connect the machine to a computer, and the LTO tape media. The machine hardware is minimal and looks very much like a desktop hard drive enclosure or a small computer tower. Tapes are loaded in the front of the machine via a mechanical slot, just like a VCR.

THUNDERBOLT

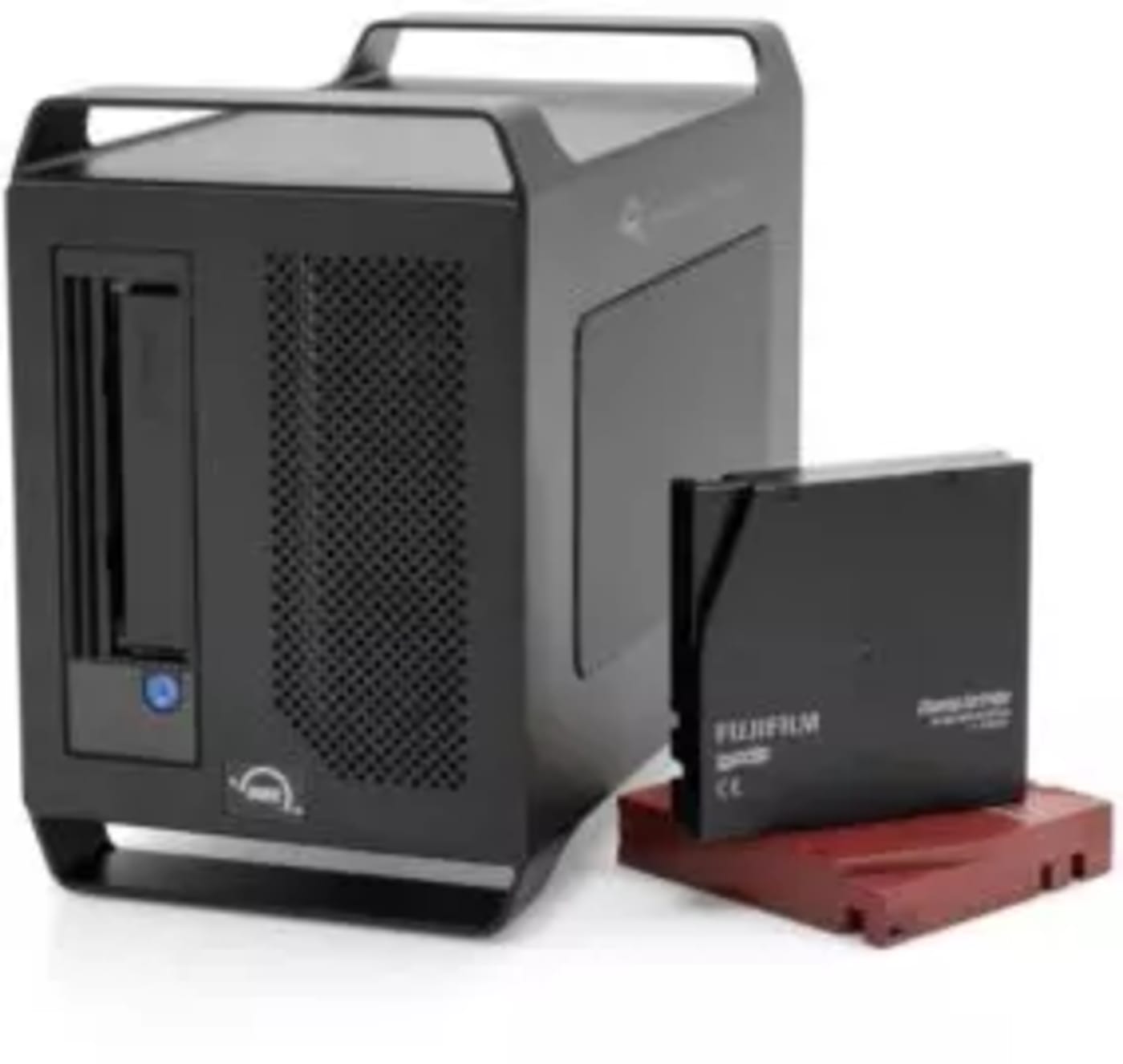

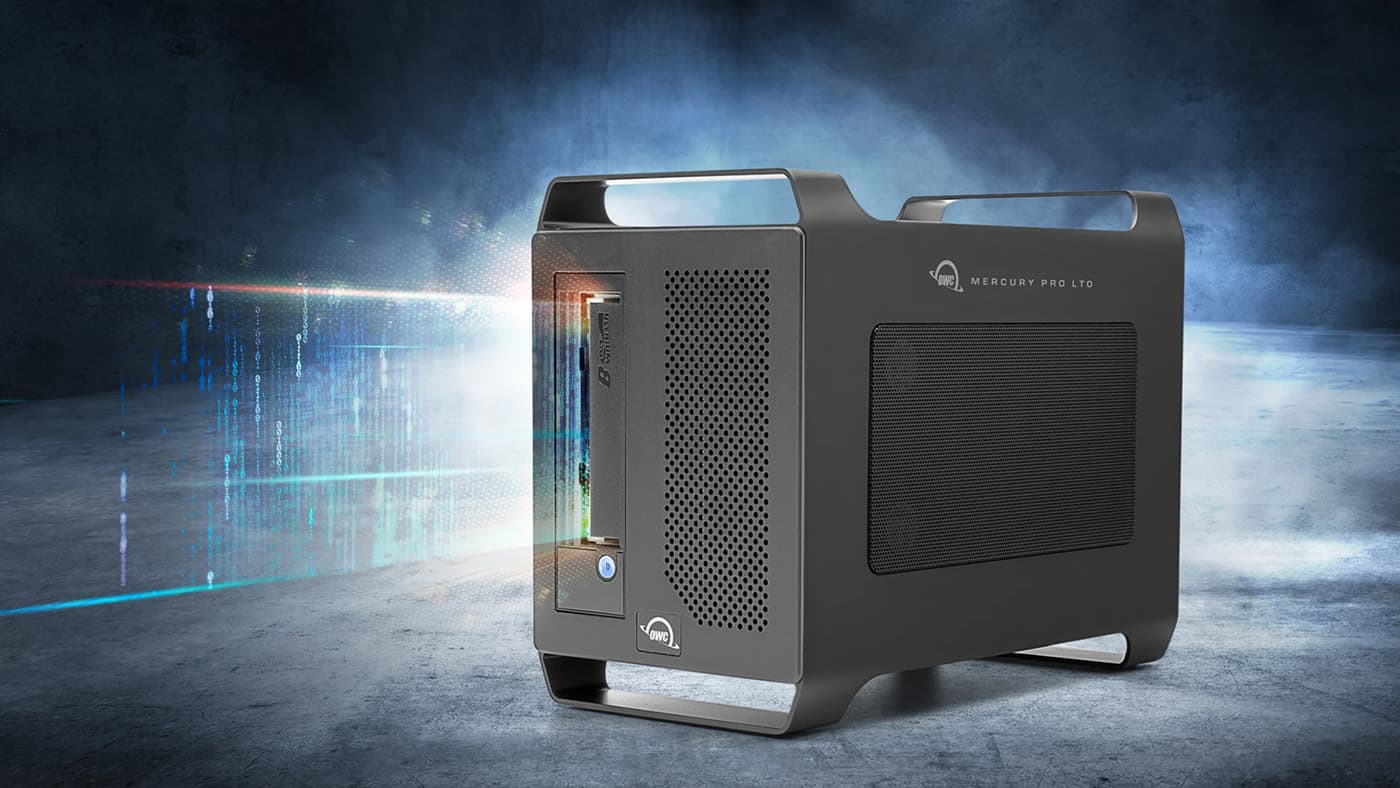

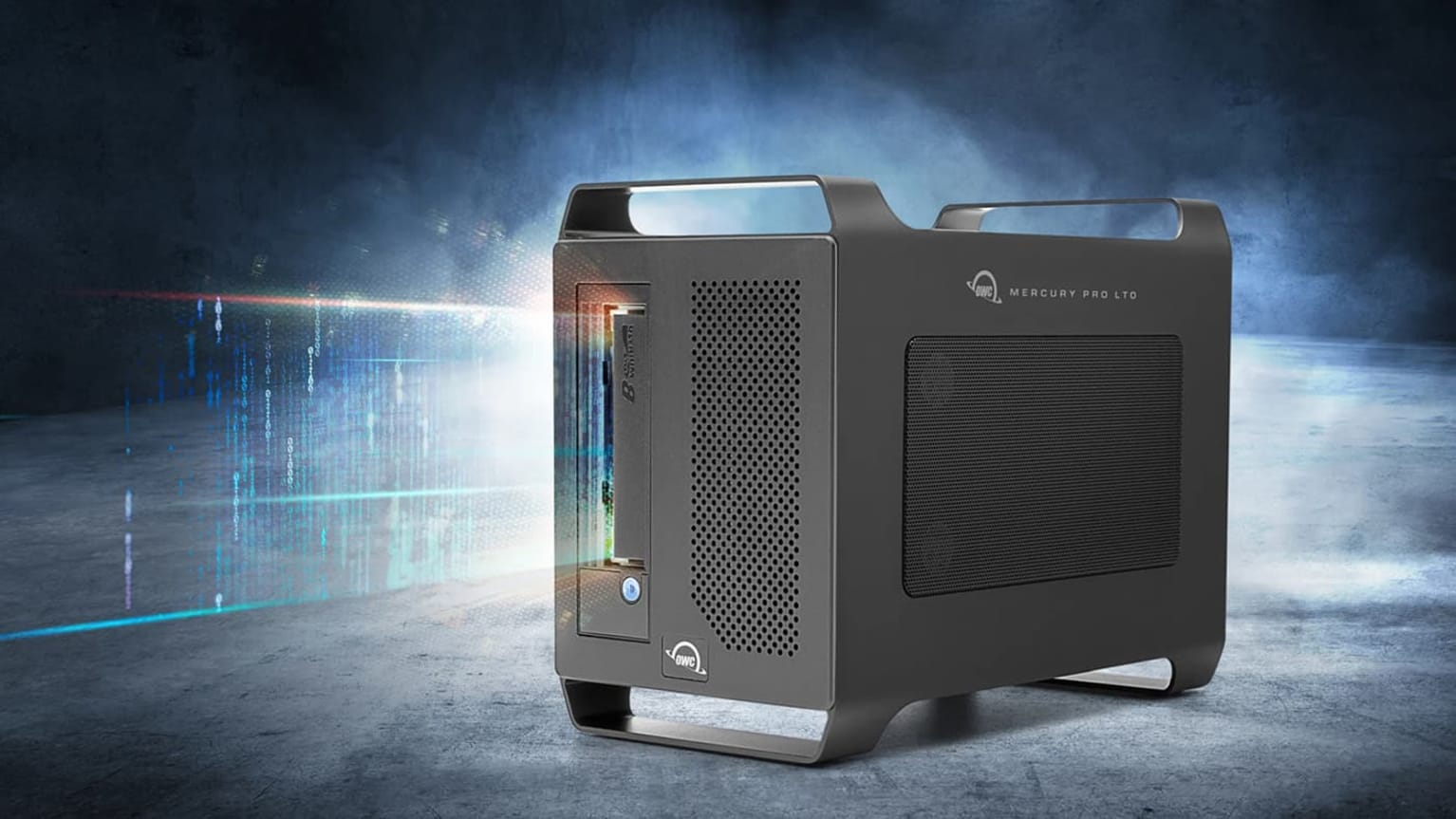

Thunderbolt is an especially convenient way to interface with LTO hardware. OWC’s Mercury Pro LTO features an LTO machine with a Thunderbolt interface in a single package. Simply plug into a Thunderbolt 3 Apple Mac or Thunderbolt 3 enabled Windows PC, install the device drivers and system tools needed by your system, and you are ready to start reading and writing tapes!

Thunderbolt 3 to Thunderbolt or Thunderbolt 2 adapters are also compatible with the OWC Mercury Pro LTO. Since Thunderbolt runs on a bus, you can daisy-chain a display off of the LTO hardware by using the included display-port connection. Thunderbolt is not the only interface that LTO drives support; SAS connections are very common on tower-based systems. However, the Thunderbolt-enabled LTO machines are more convenient because no additional hardware purchases are required.

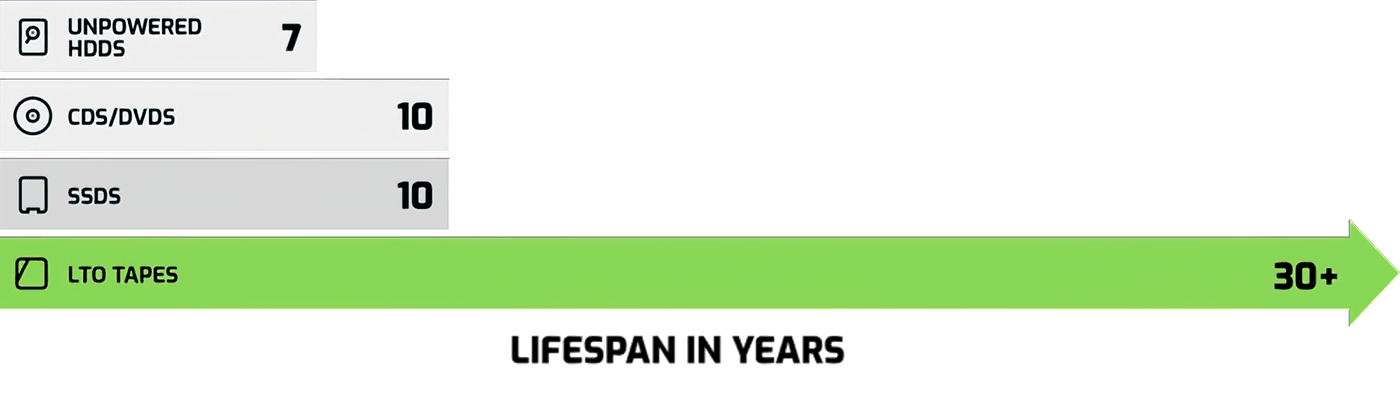

LTO media is specifically designed to house data for long periods of time and have a shelf life of 30 years. The tapes are about 10cm (4in) in size and look like a cross-over between a cassette tape and a floppy disk. The current generation of LTO hardware and tapes is referred to as LTO-9. LTO-9 media have storage capacities of 18TB. At this time of writing, an 18TB LTO tape is less than one-half the cost of a 18TB HDD.

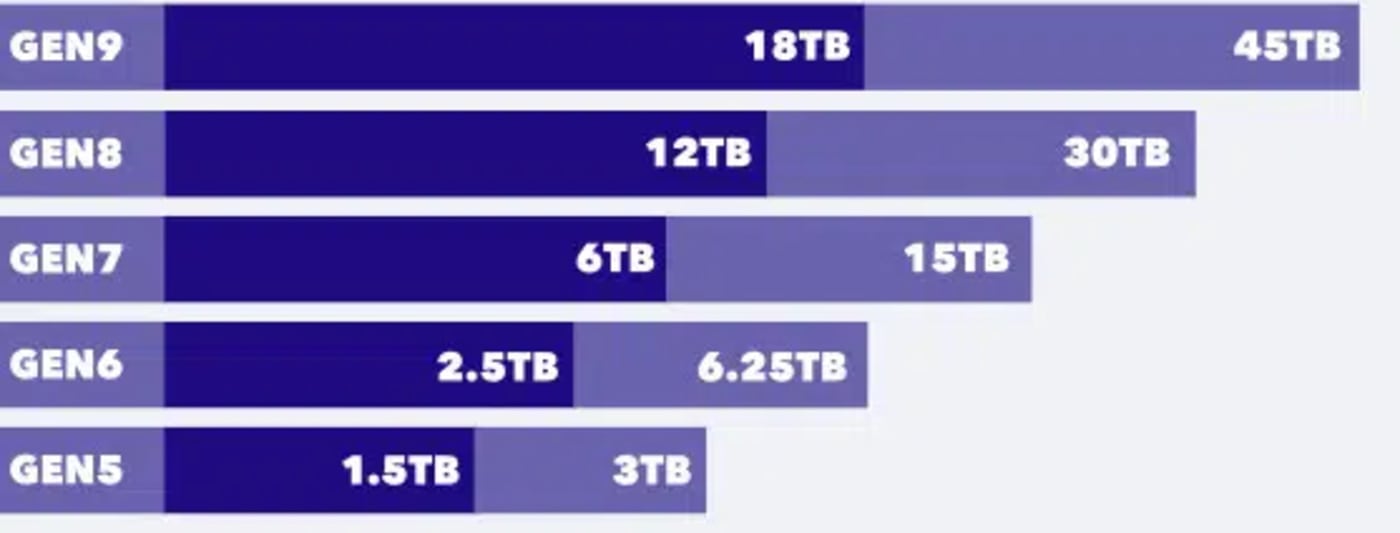

What are LTO generations?

Every few years, a new generation of readers and media is released. LTO-1 was introduced in the year 2000 and supported 100GB per tape. LTO-8 was introduced in 2017 with support for 12TB per tape. An LTO-8 machine can read and write the current generation and one previous generation of media, which are LTO-7 and LTO-8.

LTO-9 was announced in 2020 with support for 18TB per tape, a 50% increase over LTO-8. LTO-9 supports one generation of backward compatibility, making it capable of reading and writing to LTO-8 cartridges.

The 3-2-1 Rule of Backup

To minimize potential data failures, production companies like Netflix have adopted the 3-2-1 Rule. This entails:

• 3 copies of your media
• 2 different types of media
• 1 offsite location

Three copies of media – one working copy that you use daily, followed by two backups that will be living off your primary system. Two different types of media, storage media being hard drives, solid-state drives, optical media such as BluRay or DVD, flash memory devices, and/or LTO. By diversifying storage types, you are likely to offset the timing of any one failure as each medium carries its own expected shelf life and vulnerabilities. Lastly, one offsite location is to mitigate an environmental disaster such as a fire or a flood.

From Desktop to Datacenter

LTO systems are not just reserved for desktop users. The technology can be found in all corners of the IT industry. Systems range from single drives all the way up to automated robotic systems carrying hundreds of tapes to dozens of readers. LTO readers and media can be found in the film and television industry, large data centers, and government agencies around the world – any industry that requires the safe, long-term storage of data!

From set to studio

Film productions have embraced LTO as the platform of choice for transporting and storing camera media. Every day onset, Digital Imaging Technicians (DITs) and Assistant Editors write all camera and sound media generated by production to LTO. The tapes are easier to ship around the country (or around the world) than traditional hard drive storage due to their lower shipping weight and high storage capacities.

Additionally, with read and write speeds in the neighborhood of 1TB per hour, data can be transferred between locations much more rapidly and safely using courier services that attempting to transfer similar amounts of data via a network link.

This workflow has become necessary as camera manufacturers continue to produce higher resolution images with the advent of 4k, 8k, and even 12k image sensors – generating a massive amount of data every day! The studio then uses LTOs to store the completed film within the studio vault.

When do you need LTO?

Now that we’ve covered what LTO is and which industries use this technology daily, how do you know if LTO is the right platform for your business?

Security

Are you responsible for the security and storage of digital files and documents? If the answer is yes, LTO is a strong contender over cloud storage. By storing all media physically and locally, there is less chance of a ransomware attack or service outage. Plus, it’s a great solution if you need backup of organization data to meet specific regulatory compliance—Sarbanes-Oxley, HIPAA, FISMA, ISO 27001, etc.

Versioning

Most LTO authoring software, including OWC ArGest Backup, supports versioning—this means that as you are working on a client’s project over the course of months, the archive software will know to backup documents every time they are updated without redundantly duplicating unaffected assets.

Shelf Life

Do you have long-term clients and expect to do repeat business for years to come? With a shelf life of 30 years, LTO media is ideal for reliably creating offline deep archives of important data that requires lon-term, reliable and secure retention of 5+ years. With Thunderbolt 3 speed and plug-and-play performance, grabbing assets from previous projects can be done quickly and accurately.

Cost

Do you keep purchasing hard drives, only to have them reach capacity quickly? LTO’s per tape cost is attractive after the initial investment is made with the deck hardware. The removable tapes have a small footprint and do not require any power supplies or cables. While that sounds like a minor point to make, I am positive that many of you reading this have a mystery box of power supplies stuffed in the office closet (I know I do).

Plus, if you need cost-effective geographical separation of systems and data copies for disaster recovery, LTO is a great solution.

Scalability

Chances are, the data you produce at work is the most valuable asset in your business. That’s why secure and reliable archiving practices are a must. LTO makes a compelling option for businesses looking to grow in size and have a solid IT backup solution in place.

And if your initial seeding of large scale data—think hundreds of TB—to cloud and replication services is slow-going or would take too much time to be practical, LTO is, once again, a great solution.

Do you have a data-horror story? Want to share your workflow for backing up media? Let me know in the comments section – I’d love to hear about it.
